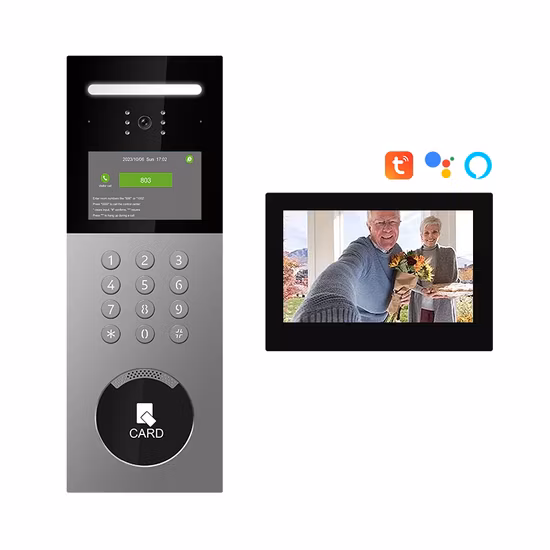

Video Intercom System for Building

Basic Info.

Model NO.	DKS15122
SIP	Sipv2
Vandal-Proof	Ik10
Working Temperature	-60 - +50
Duplex	Two Way Talk
RFID 125 kHz	13, 56MHz
Mobile Apps	Andorid/ Ios
Call Forwarding	Supports
Resolution	1.3 Megapixel
IR	10 Meters
Subscriber	9999
Emergency Call Button	Supports
RFID	8500 RFID Keys
Name	Building Intercom
Water-Proof	IP54
Functionccess	Access Control
Transport Package	Carton Box
Specification	1.5kgs
Trademark	Beward
Origin	Russia
HS Code	8517699000
Production Capacity	100000/Year

Product Description

Video Intercom System for Building Vandal-proof IP Video door station DKS15120 with SIP support allows to creat an IP intercom system, based on a standard local IP network, without any additional applications, communications, and equipment. Multiple subscriber SIP door station Beward DKS15120 can be easily integrated into an Ethernet network and into a multi-apartment analog network. Main Features Ø Intelligent echo cancellation Ø Vandal-proof design Ø Ste emergency call and concierge button Ø Support for RFID 125 kHz and 13.56 MHz Ø Video transmission 1.3 megapixels Ø Ability to replace the video module without removing or disassembling the doorphone Ø False lens Ø Duplex audio Ø SIPv2 protocol support Ø IR illumination up to 10 meters Ø Operating temperature range from -50 to + 60 ° С Ø Support for 9999 subscribers Ø 8500 RFID keys Ø Opening the door according to the individual code of the subscriber Ø Registration of an RFID key for an individual user code Ø 5 calling directions per one subscriber Ø Possibility of calling up to 600 subscribers via coordinate-matrix analog networks (option) Ø Backup storage for 8500 RFID keys and 1500 codes for firmware or restart of the doorphone Ø Removable memory with all settings (USB, pre-installed) Ø Installed microSDHC card at least 4 GB, write to a memory card Ø Readiness for working off the basic functionality 1 second after the power is applied (access to the entrance, call to analog pipes) Ø Frost resistant 8-character LED display Ø Tamper switch Ø Possibility of connecting an additional door and a 1-Wire reader for it Ø Power relay output

General
Image sensor	1,3 MP, Color, 1/3'' SONY Exmor, Day/Night
Sensitivity	0.01 lux (Day) / 0.003 lux (Night) / 0 lux (IR illumation)
Lens	2 mm, F2.0
Field of view	137° (horizontal), 103° (vertical)
Zoom	Digital, via the WEB UI
WDR	Digital, 3 Presets
Noise reduction	2D/3DNR (level adjustment), SmartNR
Shutter time	1/25 ~1/8000 s (Auto, maximum value setting)
Signal/ Noise ratio	50 dB or greater
Synchronization	Light source synchronization 50, 60 Hz
Other features	Elecretic Mechanical IR filter, Progressive Scaning
Video
Compression	H.264 BP/MP, Motion JPEG
Video streaming	Dual codec: H.264/MJPEG, H.264/H.264, MJPEG/MJPEG
Resolution	Main Stream: 1280x960 (SXGA), 1280x720 (HD)
	Sub Stream: 720x576, 640x480, 320x240
Framerate	Up to 25 fps for all resolutions
Bitrate	32 kbps ~ 16 Mbps, CBR, VBR
Image settings	Brightness, contrast, sharpness, saturation, exposure, color grading, hue,
	quality, rotation, flip (vertical/horizontal), ART, white balance, exposure
	time (set gain and minimum value)
Subtitles	Title, date, time, weekday, bitrate, framerate,
	number of connections
Audio
Audio output	Built-in speaker
Audio input	Built-in microphone
Compression	G.711 (a-law, u-law), G.726
Other features	Duplex
Illumination
IR illumination	IR LED (3rd generation, 2 pcs)
Control	Auto, ON/OFF
Operating mode	IR sensor, video signal, continuous
Wavelength	850 nm
IR distance	Up to 10 m
Network & interfaces
Network interface	10Base-T/100Base-TX
Network protocols	TCP/IP, SIP v.2.0, VPN, HTTP, HTTPS, FTP, SMTP, DDNS, DHCP, PPPoE,
	RTP, RTSP, UPnP, UDP, NTP, ONVIF v.2.41, Modbus TCP
Connection	DHCP, static IP address
Users	Up to 3 accounts
Number of doors	2 pcs.
Number of door opening sensors	2 pcs.
IP intercom break sensor	Yes
Power relay	1 pcs.
Analog video output	PAL/NTSC 720H
Other features	Supports microSDHC (up to 32GB), USB2.0, RS-232TTL or 1-wire
Recording & events
Events	Motion detection, network failure, call button pressing
Motion detection	Build-in video motion detector, up to 4 detection zones (sensitivity adjustment)
E-mail notification	At events: Images
FTP, memory card	At events: Images, video
Operation
Power	12 V 1 A (DC)
Power consumption	12 W
Switching current	Up to 1 A
Operating temperature	-50°C ~ +60°С
Ingress protection	IP66
Housing	Vandal-resistant
Housing material	Metal
Weight	1100 g
Dimensions (WxHxD)	External panel: 262x150 mm
	Inner part of the housing - mounting hole: 224x129 mm
	Housing Depth (Flush) 32 mm
System requirements	Microsoft Internet Explorer 9.0 Windows 8/7/Vista
Package contents
Package contents	IP Door Station
	Terminal blocks
	Package

We offer free management software and mobile apps, SDK/API files are available for Integration works.
Our advantages:1.Make the reliable IP security surveillance cameras used for a professional surveillance project2.Strong and experienced R&D engineer team, offer SDK&API for you, meanwhile, we can help and support you to develop, revise and integrate into your own system3.As a developer of professional software and web applications for managing video surveillance systems, we developing competitive and reliable products that meet the requirement of our customers.FAQ: Customer: What's your payment method?We accept payment by credit card and T/T on Alibaba Trade Assurance and Paypal, Western Union, or as the method of custom.T/T: 30% deposit, the balance needs to be paid before deliveryL/C: the balance need to be irrevocable L/C at sight
Customer: How do you ensure your quality?We are ISO 9001factory with a strict inspection for each process. Customer: What is the lead time?Depends on the order quantity and detailed OEM request, normally 2-3 days for sample(Non-customized), 5-15 days for mass production. Customer: Your price is lowest in the market?No, but the professional service and quick response will save a lot of your energy, quality is our culture. Customer: Do you post-sale service?Yes, we could provide on-line technical support, If any quality issue. We offer free repair during the warranty time.
Customer: How long is the warranty period?2 years
Customer: What transformations are available?By air, by sea or customer indicated agent
May I have a sample order?Yes, a sample order is available. Do you have any MOQ limit for orders?MOQ 1 piece for sample test. How do you ship the goods and how long does it take to arrive?We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3- 9 days to arrive. Airline and sea shipping is optional. How to proceed with an order?Step 1: Let us know your requirements or application.Step 2: We quote according to your requirements or our suggestions.Step 3: The customer confirms the samples and places a deposit for the formal order.Step 4: We arrange the production.
How to deal with the faulty?Firstly, Our products are produced in a strict quality control system and the lowest defective rate is under control.Secondly, during the guarantee period, for the defective unit, we will repair them and resend them to you or we can discuss the solution including sending a new unit for replacing according to the real situation.
Do you offer OEM service?Yes, We accept OEM both for hardware and software as well as packing box.
What's your MOQ for OEM service?MOQ for software OEM is 100pcs.MOQ for packing OEM box is 500pcs.MOQ for hardware OEM is 500pcs, according to detailed requests.
